JQB Single Bag Filter Housings
Product Brief：The JQB Single Bag Filter Housings is made by integral investment casting. The recessed cover single bag filter adopts a side-inlet and bottom-outlet filtration method. The side-entry structure can be connected with any inlet direction. The simple filter structure makes cleaning easier. The adjustable bag clamping device ensures better sealing performance.
Introduction
The JQB Single Bag Filter Housings is made by integral investment casting. The recessed cover single bag filter adopts a side-inlet and bottom-outlet filtration method. The side-entry structure can be connected with any inlet direction. The simple filter structure makes cleaning easier. The adjustable bag clamping device ensures better sealing performance. The bolted fastening and precision-cast top cover design can withstand higher pressure.
Features
Integral investment-cast top cover design, capable of withstanding higher pressure.
The top cover handle is designed with ergonomics for easy opening.
The top cover can adapt to different opening methods, flexibly operated according to the on-site environment.
Side-entry inlet and removable top cover prevent filtrate overflow during opening.
Special pressure ring design provides 360° bag clamping with no bypass leakage.
Working Principle
Material flows from the bag filter inlet into the filter bag. Particles larger than the bag's filtration pore size are trapped on the inner surface or within the filter bag. The purified liquid passes through the filter bag from inside to outside and exits through the bag filter outlet.
Application Industries
Applicable Industries: Water treatment, paper making, fine chemicals, automotive, machining, petrochemical, coatings, food & beverage, electronics, etc.
Applicable Liquid Types: Wide applicability, various liquids containing trace impurities
Main Filtration Function: Remove particles of various sizes, purify liquids, protect key equipment
Filtration Type: Particle filtration, manual periodic bag replacement
Parameters

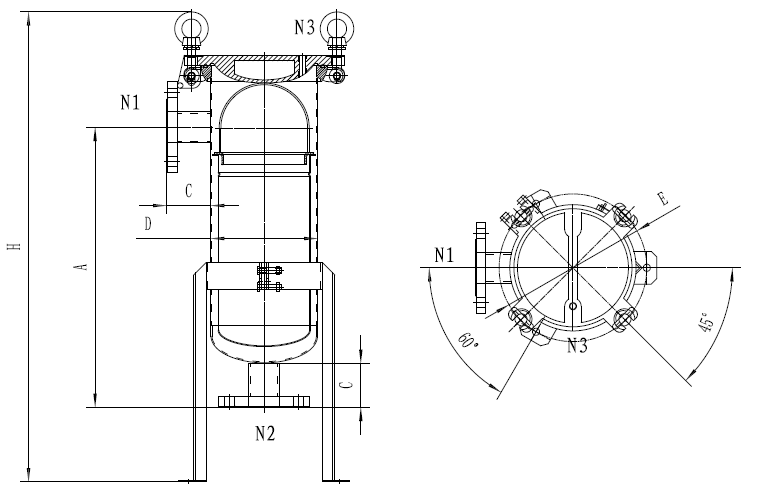

| Model | Body Dia. D | Inlet Height A | Inlet/Outlet Pipe Length C | Total Length H (mm) | Inlet/Outlet N1/N2 | Pressure Gauge Port N3/N4 | Mounting Dim. E | Reference Flow (m³/h) | Bag Size (mm) | Filtration Area (㎡) |
| JQB-1 | Ø200 | 510 | 80 | 780 | DN50 | G1/4" | Ø280 | 15 | 180×430 | 0.25 |
| JQB-2 | Ø200 | 880 | 80 | 1200 | DN50 | G1/4" | Ø280 | 30 | 180×810 | 0.5 |
| JQB-3 | Ø133 | 300 | / | 600 | G1" Thread | G1/4" | Ø205 | 6 | 105×230 | 0.08 |
| JQB-4 | Ø133 | 450 | / | 750 | G1" Thread | G1/4" | Ø205 | 12 | 105×380 | 0.16 |
| Parameter | Value |
| Filtration Precision | 0.5–1700 μm (depends on bag rating) |
| Design Pressure | 0.6–1.6 MPa |
| Max Design Temperature | 0–100°C (depends on seal & bag material) |
| Max Pressure Drop | 2.4 bar |
| Replacement ΔP | 1.0 bar |
| Housing Material | 304, 316L, Carbon Steel |
| Gasket Material | NBR (standard), Silicone, FKM |
| Surface Treatment | Sandblasting, Polishing |
