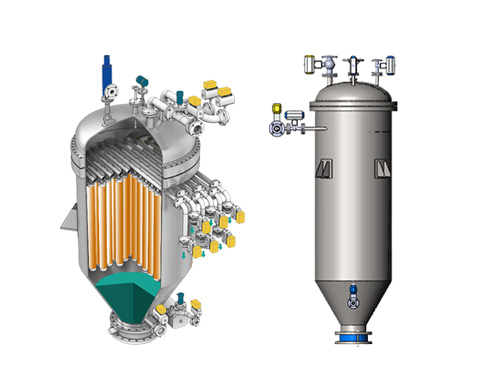

Product Brief：The pressure candle filter features pre-coat, spray rinse residual liquid treatment, filter cake layer filtration, and material thickening. It is a fully enclosed, fully automatic filter that can operate in multiple modes. The pressure candle filter features pre-coat, spray rinse residual liquid treatment, filter cake layer filtration, and material thickening. It is a fully enclosed, fully automatic filter that can operate in multiple modes.
    Filter material：SS 304、SS 316L
    Micron rating：0.22-100 μm
    Slag discharge valve：Soft seal or hard seal butterfly valve
    Design pressure：0.6MPa/1.0MPa/1.6MPa/2.0MPa
    Max. operating temperature：300℃


Product Brief：The pressure leaf filter belongs to the leaf filter category. It is a highly efficient, energy-saving, and enclosed precision clarification and filtration equipment. The product features a unique structural design, compact size, high filtration efficiency, excellent filtrate transparency and clarity, and no material consumption. It does not consume filter paper, filter cloth, or filter cartridges, only a small amount of filter aid, resulting in very low filtration costs. The equipment is easy to operate, maintain, and clean. It can be customized with either manual or automatic slag discharge, with filtration areas ranging from 2 m² to 200 m².
    Filter material：SS 304、SS 316L
    Filter Area：2-200㎡
    Micron rating：1 μm
    Slag discharge valve：Soft seal or hard seal butterfly valve
    Design pressure：0.6MPa/1.0MPa/1.6MPa/2.0MPa
    Max. operating temperature：300℃

Product Brief：The high-efficiency scraper-type self-cleaning filter automatically removes particulate impurities from the outer surface of the filter element via mechanical scraping, enabling continuous online filtration. Designed primarily for high-precision filtration, the electric scraper-type self-cleaning filter offers a filtration accuracy range of 25–3000 microns. It delivers precise filtration, minimizes the risk of crushing impurities, and efficiently removes a greater volume of contaminants. Suitable for filtering water and various viscous liquids, it can handle viscosities up to 800,000 centipoise.
    Filter material：SS 304、SS 316L
    Filter media：V-SLOT slotted metal element
    Micron rating：25~1500 μm
    scraper method：Inner scraper, outer scraper
    Design pressure：1.0MPa/1.6MPa/2.0MPa
    Max. operating temperature：200℃

Product Brief：JQD Series Self-cleaning filter is a new high-efficiency self-cleaning filter that automatically removes particulate impurities from the inner surface of the filter element via mechanical scraping, enabling continuous online filtration. Designed primarily for high-viscosity filtration, it handles viscosities up to 800,000 mPa·s and offers a filtration accuracy range of 50–1500 μm. It provides precise filtration, rapidly scraping impurities off the element surface for highly efficient contaminant removal, making it suitable for water and various viscous liquids.
    Filter material：SS 304、SS 316L
    Filter media：V-SLOT slotted metal element
    Micron rating：25~1500 μm
    scraper method：internal scraper
    Design pressure：1.0MPa/1.6MPa/2.0MPa
    Max. operating temperature：200℃

Product Brief：The automatic backwashing filter series is designed to remove particulate impurities from high-flow, high-velocity and low-viscosity fluids. As an electromechanical integrated product, JOECHR Eautomatic backwashing filter features optimized design, high filtration efficiency and low operating cost. It maintains continuous filtration during backwashing and is widely applied in metallurgy, chemical industry, power generation, oilfield reinjection water, ship ballast water, environmental water treatment and other industries.
    Filter material：SS 304、SS 316L
    Filter media：V-SLOT slotted metal element
    Micron rating：25~2000 μm
    Max. operating temperature：100℃
    Design pressure：1.0MPa/1.6MPa/2.0MPa


Product Brief：Designed based on modular concept, the tubular backwashing Filter assembles multiple standard filter units into an automatic filtration system featuring high safety factor. The number of on-line units can be flexibly increased to match varying flow demands. Running automatically with no manual cleaning required, the filter boasts good expandability and allows connection of external high-pressure backwash fluid.
    Filter material：SS 304、SS 316L
    Filter media：V-SLOT slotted metal element
    Micron rating：25~2000 μm
    Design pressure：1.0MPa/1.6MPa/2.0MPa



Product Brief：BACKWASHING BASKET STRAINERS
