JQDB-2 Multi- bag filter housing
Product Brief：The JQDB-2 Multi- bag filter housing is developed on the basis of the JQDB-1 Multi- bag filter housing, with a quick-opening mechanism and a balancing mechanism added, making operation simple and fast. It overcomes the cumbersome and time-consuming bag replacement problems of conventional multi-bag filters. The spring-balanced assist-opening mechanism can be held stationary at any angle, ensuring safety and reliability.
Introduction
The JQDB-2 Multi- bag filter housing is developed on the basis of the JQDB-1 Multi- bag filter housing, with a quick-opening mechanism and a balancing mechanism added, making operation simple and fast. It overcomes the cumbersome and time-consuming bag replacement problems of conventional multi-bag filters. The spring-balanced assist-opening mechanism can be held stationary at any angle, ensuring safety and reliability.
The quick-opening/closing mechanism is the simplest, most user-friendly and safest operating system, minimizing downtime, boosting productivity and reducing operating costs. A unique pressure ring ensures bag sealing. The balancing mechanism of the JQDB-2 Multi- bag filter housing makes opening and closing the top cover effortless. The compact design minimizes liquid loss.
Features
1.Quick-opening cover for easy bag replacement, shortening downtime.
2.Top cover opening angle: 105°, with a locking device when closed.
3.Spring-gravity balancing device replaces the traditional hand swing arm, effortlessly lifting the top cover up and down.
4.Each filter bag is designed with an individual locking device, ensuring perfect sealing between the bag and the filter.
5.Suitable for applications requiring frequent bag replacement.
Working Principle
The multi-bag filter is a positive-pressure filtration device, mainly composed of a filter housing, filter cover, quick-opening mechanism, stainless-steel filter bags with support cages, etc. Filtrate enters the bags through the side inlet pipe of the filter housing. The bags are mounted inside reinforcement net baskets. Liquid passing through the filter bags of the required precision grade yields qualified filtrate, while impurity particles are trapped inside the bags. Filtration consumes virtually no material.
Application Industries
Industries: Water treatment, paper making, fine chemicals, automotive, machining, petrochemical, coatings, food & beverage, electronics, etc.
Liquid types: Wide applicability, various liquids containing trace impurities.
Main filtration function: Removing particles of various sizes, purifying liquids, protecting critical equipment.
Filtration type: Particle filtration, manual periodic bag replacement.

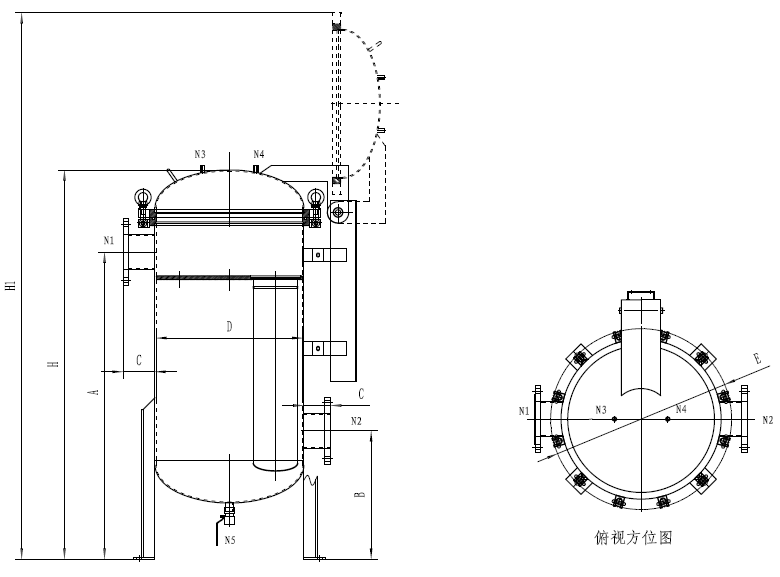

Parameters
| Model | Shell Dia. D | Inlet Height A | Outlet Height B | Inlet/Outlet Pipe Length C | Total Length H (mm) | Inlet/Outlet N1/N2 | Pressure Gauge N3/N4 | Drain N5/N6 | Mounting Size E | Reference Flow (m³/h) | Bag Qty | Filter Area (㎡) | Open Height H1 |
| JQDB-2 | Ø400 | 1080 | 380 | 80 | 1320 | DN65 | G1/4" | G1/2" | Ø530 | 60 | 2#×2 | 1 | 1760 |
| JQDB-3 | Ø450 | 1080 | 400 | 100 | 1350 | DN80 | G1/4" | G1/2" | Ø580 | 90 | 2#×3 | 1.5 | 1830 |
| JQDB-4 | Ø500 | 1150 | 450 | 100 | 1450 | DN100 | G1/4" | G1" | Ø630 | 120 | 2#×4 | 2 | 1990 |
| JQDB-5 | Ø550 | 1150 | 480 | 120 | 1460 | DN125 | G1/4" | G1" | Ø680 | 150 | 2#×5 | 2.5 | 2060 |
| JQDB-6 | Ø600 | 1180 | 520 | 120 | 1540 | DN150 | G1/4" | G1" | Ø780 | 180 | 2#×6 | 3 | 2160 |
| JQDB-8 | Ø750 | 1280 | 650 | 150 | 1730 | DN200 | G1/4" | G1" | Ø930 | 240 | 2#×8 | 4 | 2460 |
| Filtration Precision | 0.5–1700 μm (depends on bag rating) |
| Design Pressure | 0.6–1.6 MPa |
| Max. Design Temperature | 0–100 °C (depends on seal & bag material) |
| Max. Pressure Drop | 2.4 bar |
| Replacement ΔP | 1.0 bar |
| Housing Material | 304, 316L, Carbon Steel |
| Gasket Material | NBR (standard), Silicone, FKM |
| Surface Finish | Sandblasting, Polishing |
